Overgarmentblockhowto05_large

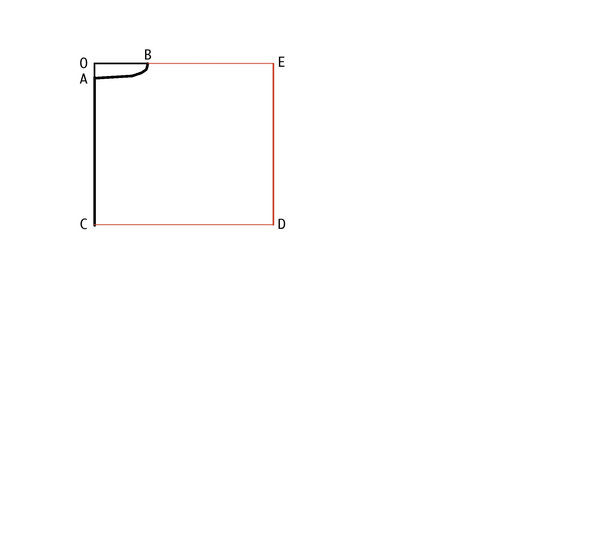

Measure to the right of point C a distance of one quarter of the bust measurement plus 4 cm (1 & 5/8"), mark the point (point "D") and then draw in the line that goes straight upward from here to the point "E", level with the point "O". If you do not have a bust measurement, but know the standard size for the planned garment, assume the following values for the bust measurement : XS : 76 cm (30"), S : 82 cm (32"), M : 88 cm (34"), L : 94 cm (36"), XL : 100 cm (38"), and extend them appropriately for larger sizes (XXL : 106 cm (40") and XXXL : 112 cm (42")). Now draw in the line from point "O" to point "E". Note that all these lines are construction lines that do not form part of the final garment outline - therefore draw them in lightly. If you are interested in making a jacket, add 7 cm (2 & 3/4") instead of 4 cm to the initial distance (one quarter of the bust measurement).

1 Comment Sign in to add a post

  • Sharm_1_large

    Apr 18, 2012, 04.57 PMby Jelena Habulan

    Hello I ’m just drafting the pattern and thinking from the standard size written down i have to calculate for exmp. step num.5 if a standard size of bust measurement is 88 cm + 4 cm=91 cm i have to calculate one quater from that…I think so ,couse it already felt strange from point A to B i had a feeling is to big? Thank you for your answer

    • This is a question
