Constructing the Basic Trouser Block
Added Aug 9, 2009

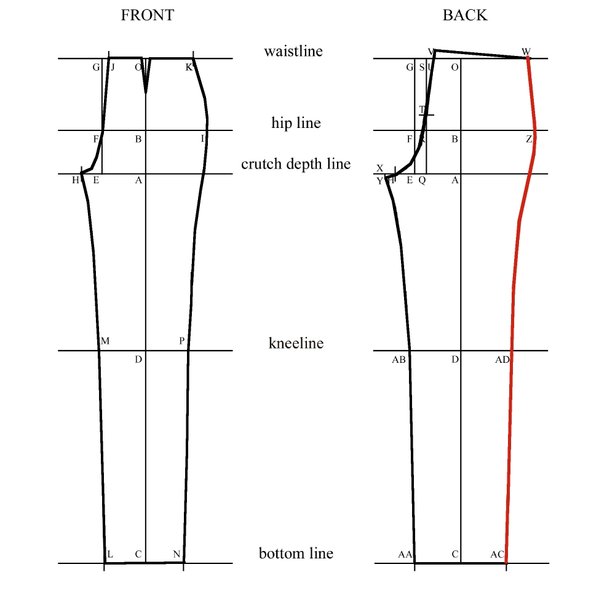

On the Back Leg Panel block, mark the point AC located the same distance as the point N is from point C on the Front Leg Panel block, plus 1 cm (0.4 in.). Mark in the point AD located the same distance as the point P is from point D on the Front Leg Panel block, plus 1 cm (3/8 in.). Draw a straight line connecting points AC and AD on the Back Leg Panel drawing.
Then draw a curved line from point AD through its outer extremity at Z and inward to point W. The deviation outwards at Z should be about 0,5 cm (3/16 in.).
